Modeling scenarios

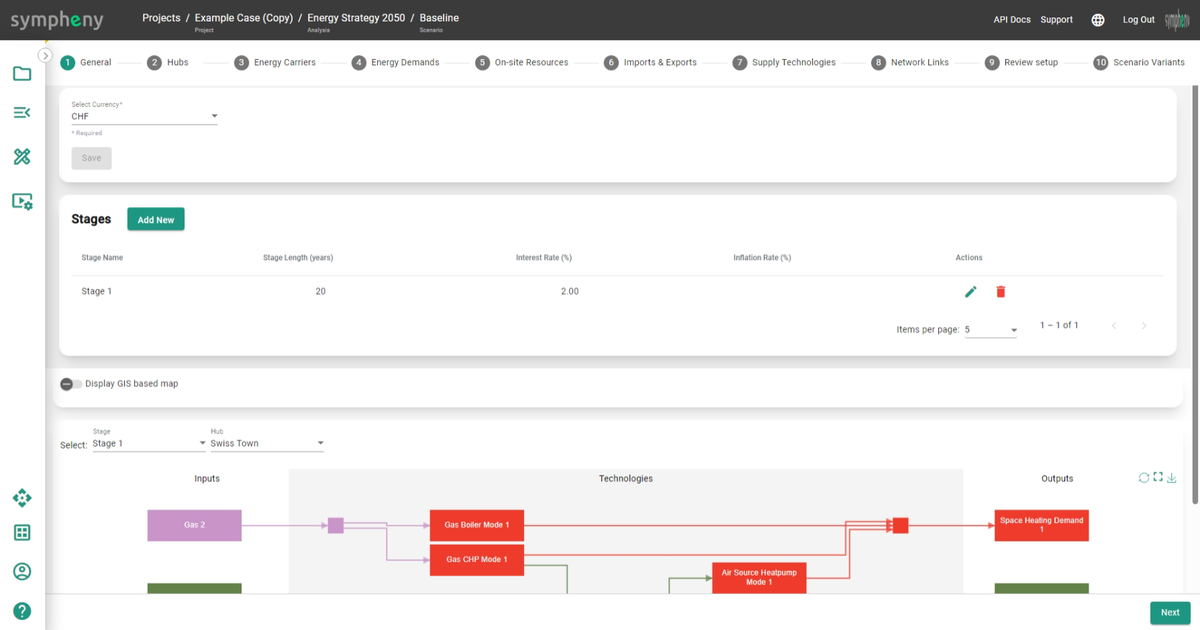

Scenario editor with step tabs across the top

Modeling steps

Modeling a scenario is a guided process. The scenario page walks you through a series of tabs, each dedicated to a specific element of your model, so you can build your scenario step by step:

  1. General
  2. Hubs
  3. Energy carriers
  4. Energy demands
  5. On-site resources
  6. Imports & exports
  7. Conversion technologies
  8. Storage technologies
  9. Network links

GIS map

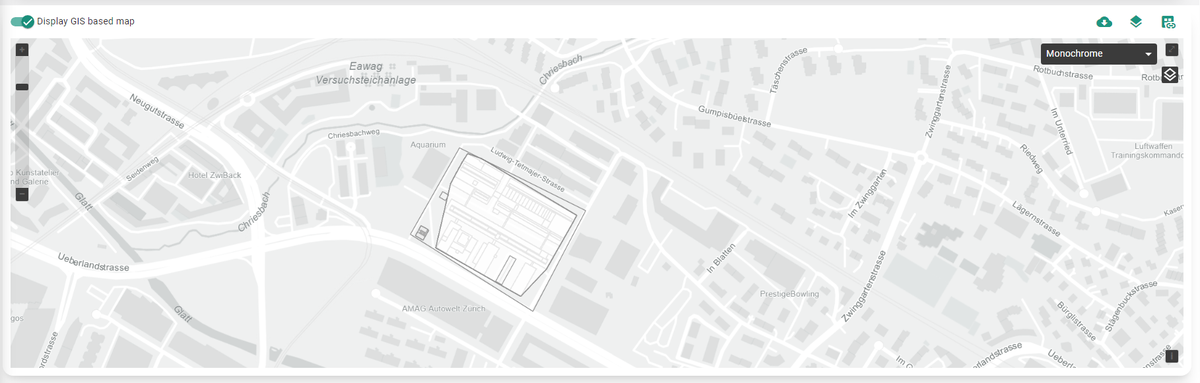

Interactive GIS map showing the hub network

Use the interactive GIS map to explore the hub network. After you select the hubs that interest you, the map shows GIS information for every hub, along with the buildings connected to it.

Energy hub diagram

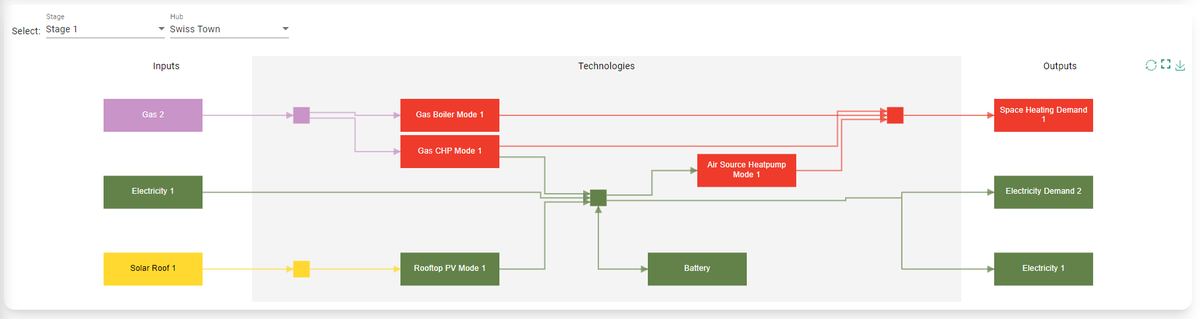

Energy hub diagram at the bottom of a scenario editor tab

The energy hub diagram of your potential system appears at the bottom of each tab. It's empty when you start a new project, and updates automatically as you add components to your model. Use the drop-down menu at the top to move between the energy hub diagrams for each of your scenario's hubs and stages.

The colors of the technologies in the energy hub diagram are determined by the primary output energy carrier of the technology. You can define these colors in the Energy carriers step.

Tip

The direction of the arrows in the energy hub diagram matches the direction of energy flows. A reversed energy demand (for example, a cooling demand) is shown as an arrow flowing away from the box representing that demand. Storages are the only technologies with bidirectional flows.
