On-site resources step¶

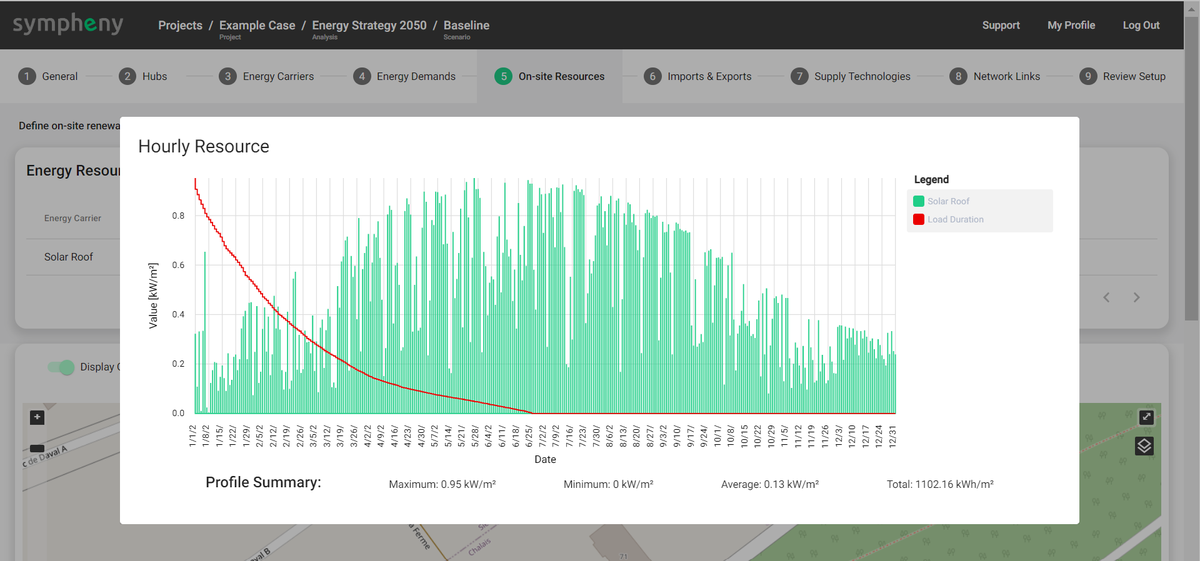

On-site resources are renewable resources with intermittent (temporally varying) availability. In Sympheny, you can quickly generate solar irradiance and wind profiles of 8760 timesteps using different methods.

On-site resources are functionally identical to imports, but with fewer available parameters. For resources with constant availability, like geothermal energy or air used in a heat pump, create an import with a fixed Maximum Capacity (kW) and no Energy Price (CHF/kWh), instead of an on-site resource.

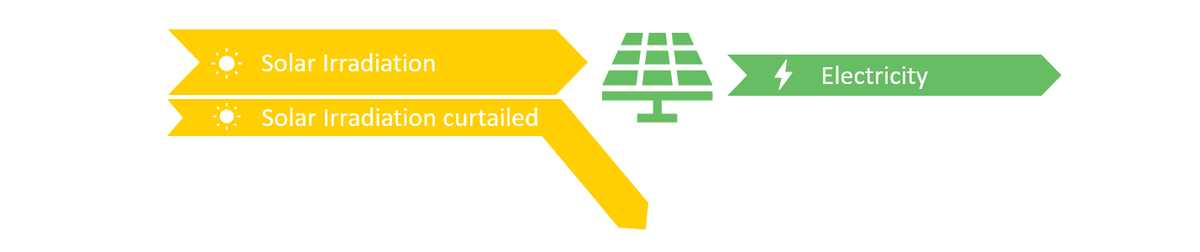

Energy produced from on-site resources can be curtailed. Curtailment occurs when the available on-site resource leads to higher energy production than required by demand and export (see diagram below) at any given time.

Creating on-site resources¶

Sympheny offers several workflows to create on-site resources:

• Add new > Generate profile > Available Resource Area (m²): generate a solar profile using the Sympheny database — easy for creating profiles across multiple hubs.
• Add new > Upload profile > Available Peak Load (kWp): upload your own normalized profile — easy for creating profiles across multiple hubs.
• Add new > Upload profile > Generic Availability (kWh/h): upload your own profile.
• Add from map > Solar Resource > Optimize slope and azimuth: explore the optimal orientation of solar panels relative to the demand profile.
• Add from map > Solar Resource > Custom slope and azimuth: accurately estimate the solar profile for a specific location, surface, and orientation.
• Add from map > Solar Resource > Weighted sum aggregation: generate an average solar profile from multiple surfaces on the map.
• Add from map > Wind Resource: generate a wind power production profile using terrain parameters.

Add new¶

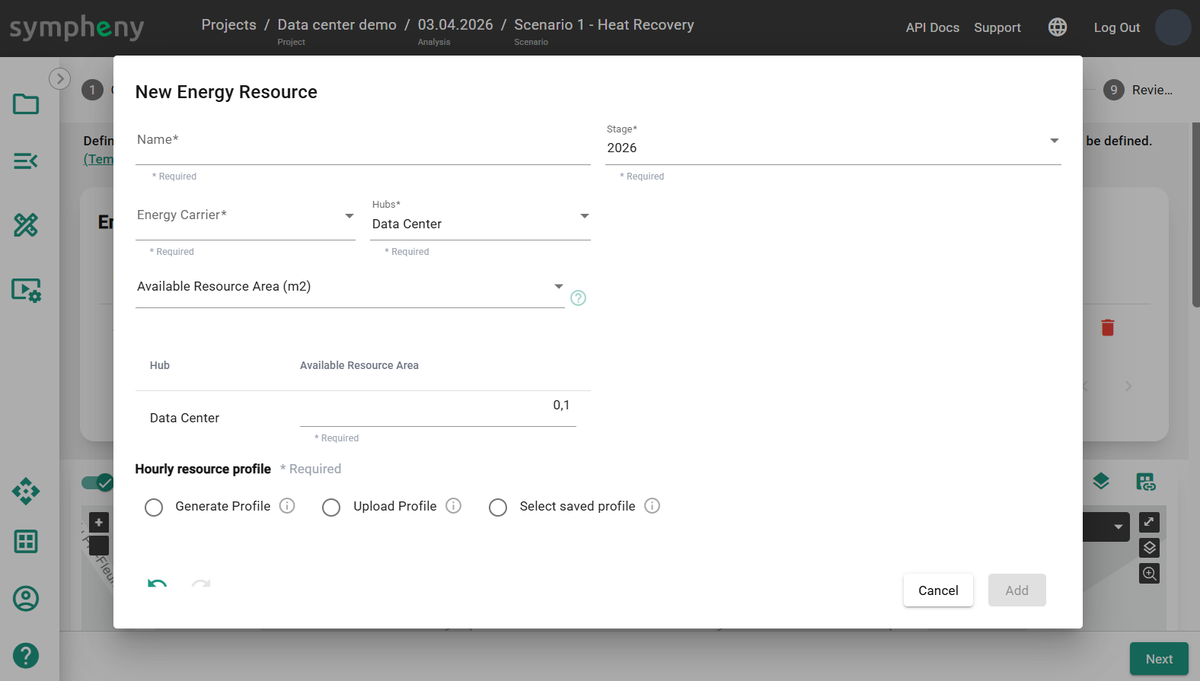

Add a new on-site resource to your scenario. This resource is free and can be used whenever it's available. In the toolbox, select an Energy Carrier matching the resource type. A Name is generated based on the energy carrier and existing profiles, and can be edited. The Hub and Stage where the resource is available are selected automatically and can be edited.

Available Resource Area (m²)¶

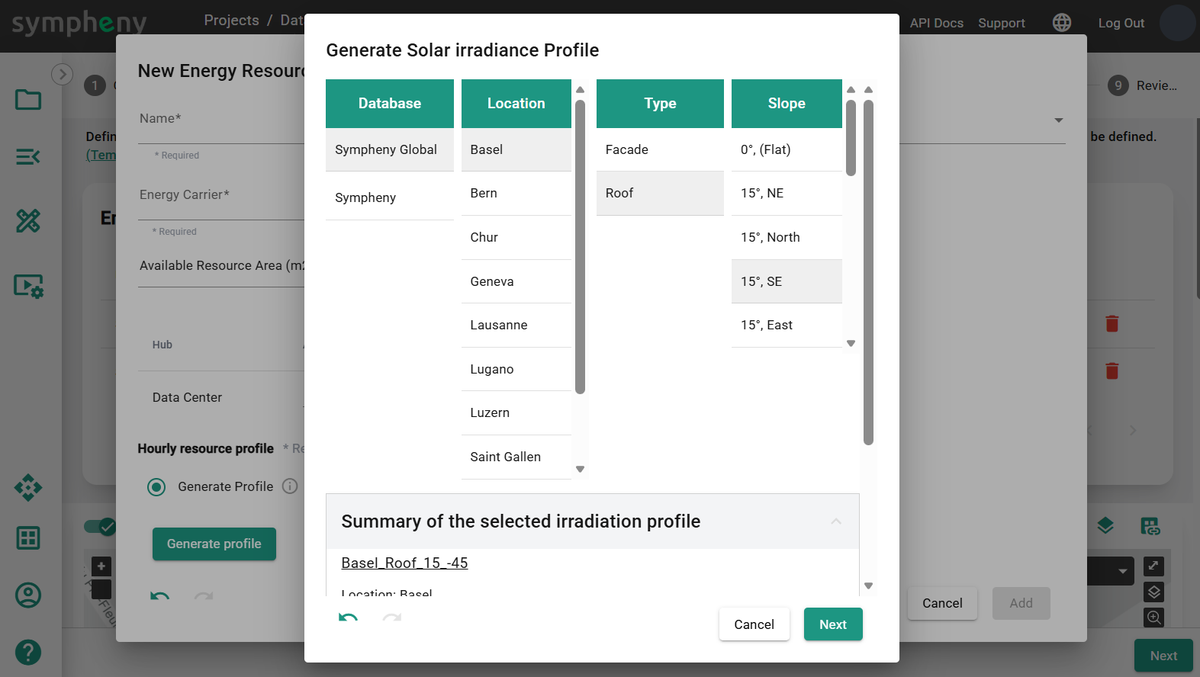

When sizing a new solar PV field, the only available information may be the Available Resource Area (m²) and location. Select Generate Profile, click Generate profile, select the Database, Location, Type, and Slope, then click Next. Sympheny generates a solar irradiance profile for a 1 m² surface area.

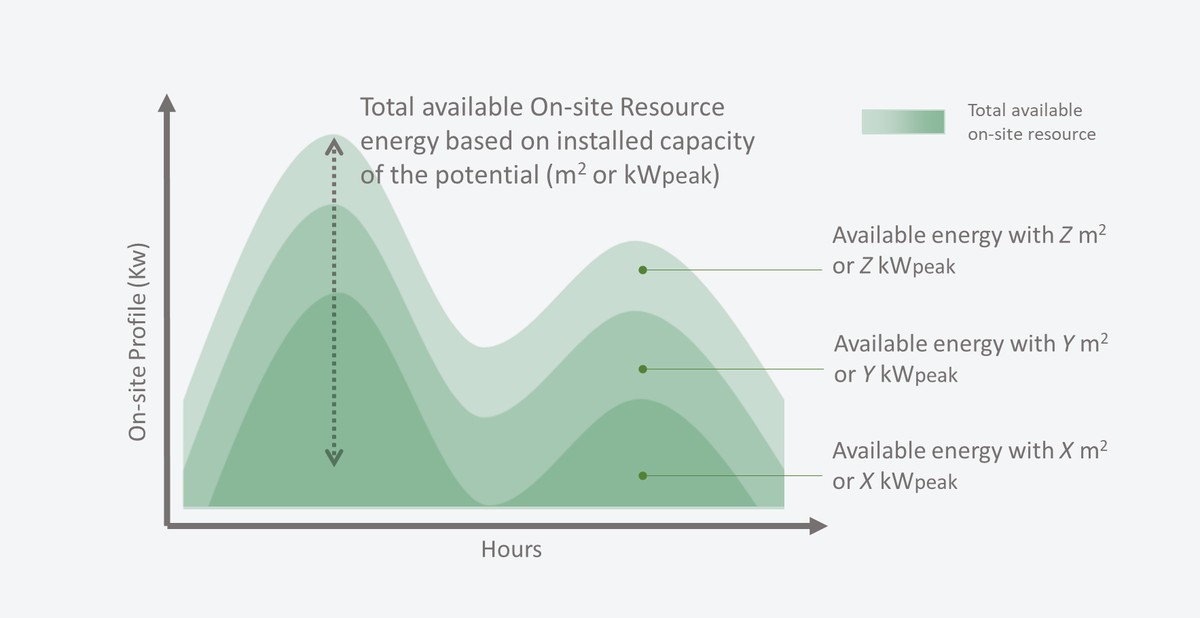

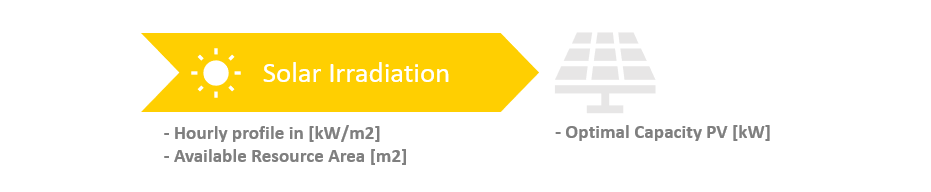

The Available Resource Area (m²) is the maximum available irradiance profile. The optimization result determines the optimal size of solar technology to install. Since curtailment may occur, the installed capacity isn't always equal to the maximal operational capacity.

Available Peak Load (kWp)¶

When the hourly profile is measured or simulated with a third-party tool, use the Upload profile function to bring it into Sympheny. In this workflow, the maximum value of the uploaded profile should equal 1 kW. Total energy available depends on the Available Peak Load (kWp). The profile can be the output of the technology (for example, PV production or wind turbine production), provided the technology's efficiency is 100%. In that case, the kW-peak (kWp) refers to the maximum capacity of the technology that uses this on-site resource.

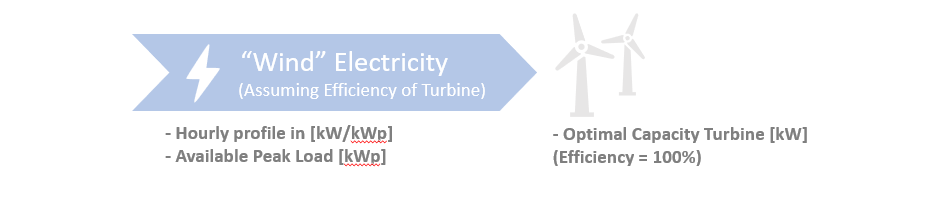

For example, the hourly resource profile of Windpower indicates the availability of wind-sourced electricity in kW per unit of peak load (kW/kWp). In this case, a conversion efficiency is already factored into the hourly resource profile, and the conversion efficiency of the wind turbine technology should be 100%.

The use of the on-site resource is determined by the optimal capacity of the technologies that use that resource.

Generic Availability (kWh/h)¶

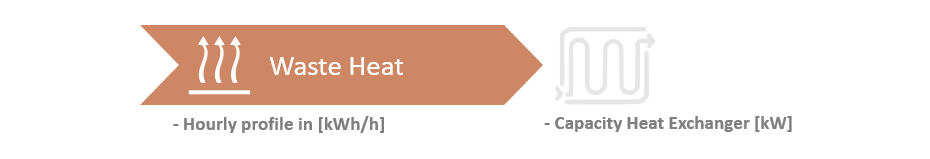

This workflow is more flexible than the previous two. For example, use it to create an intermittent industrial waste heat profile. In this workflow, the uploaded profile should be in kWh for each hour of the year.

Add from map¶

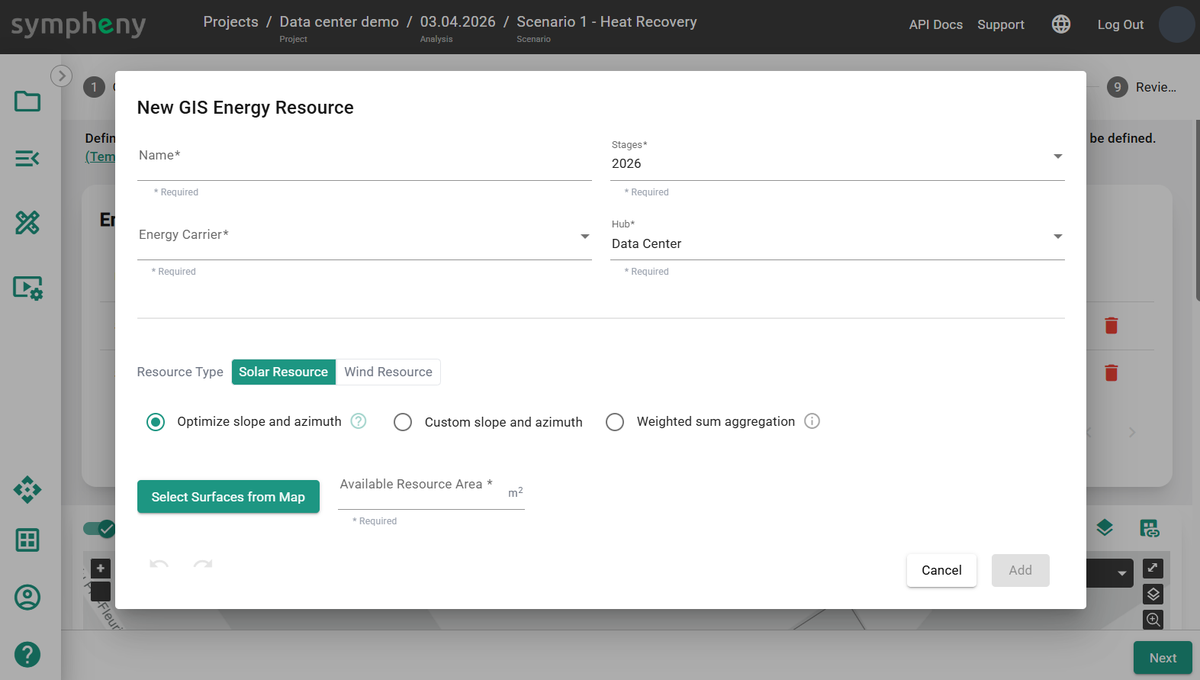

Add a new on-site resource to your scenario from the map.

Solar Resource > Optimize slope and azimuth¶

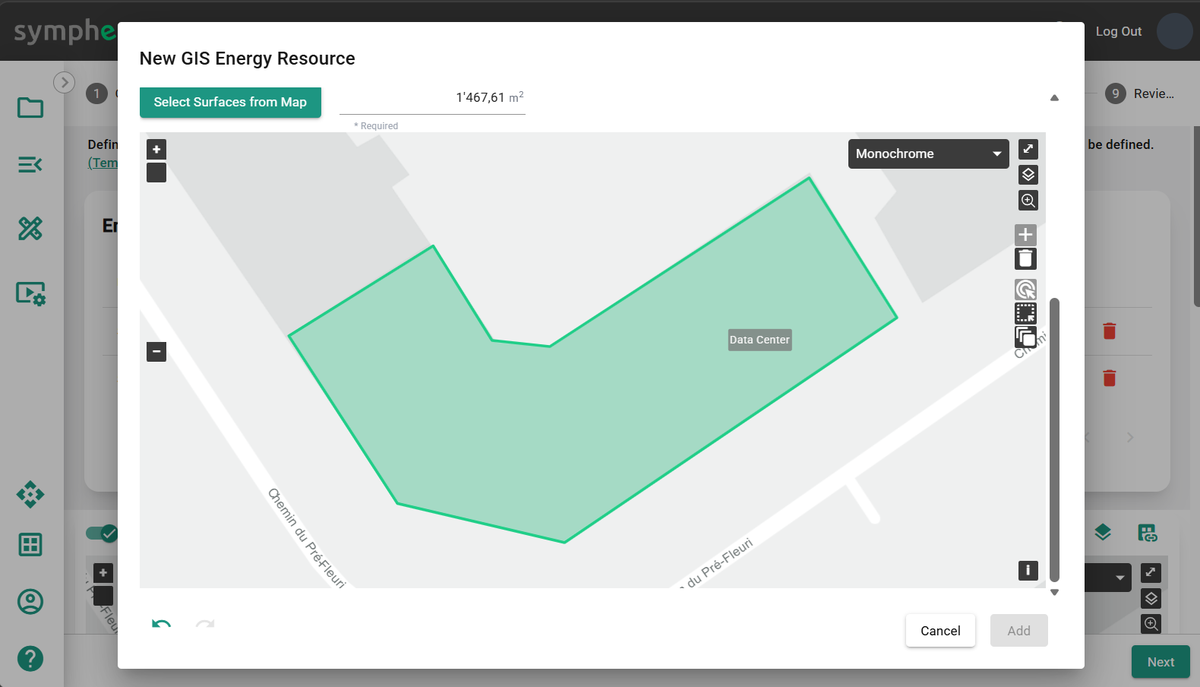

Click Select Surface from Map to select a surface, like the outline of a hub, and get the surface area (m²) and geographic location of the geometry. The optimizer defines the optimal Slope and Azimuth.

Solar Resource > Custom slope and azimuth¶

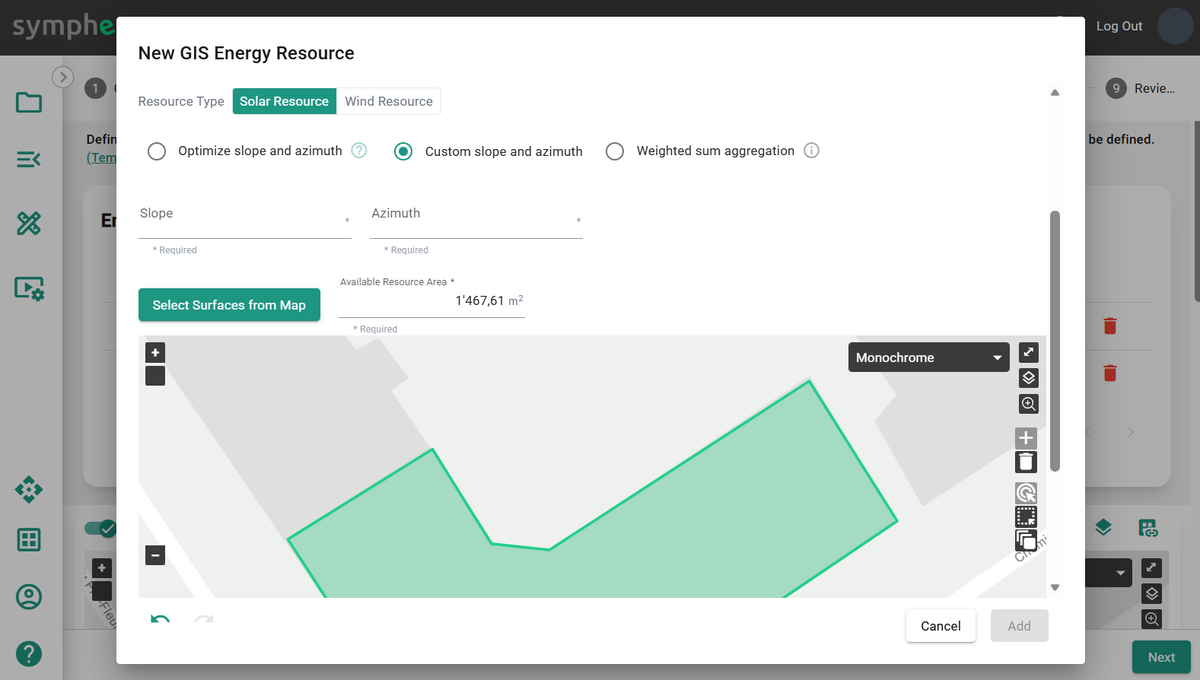

Click Select Surface from Map to select a surface, like the outline of a hub, and get the surface area (m²) and geographic location of the geometry. Specify the Slope and Azimuth.

Possible settings:

• Slope 0°: flat
• Slope 90°: vertical
• Azimuth 0°: south
• Azimuth -90°: east
• Azimuth 90°: west
• Azimuth 180° / -180°: north

Solar Resource > Weighted sum aggregation¶

Calculate an aggregated solar profile, normalized in kW/m², for all selected surfaces. The calculation accounts for the slope and azimuth of each roof element. The generated profiles are aggregated using a weighted average for each surface, with surface areas serving as weights.

Wind Resource¶

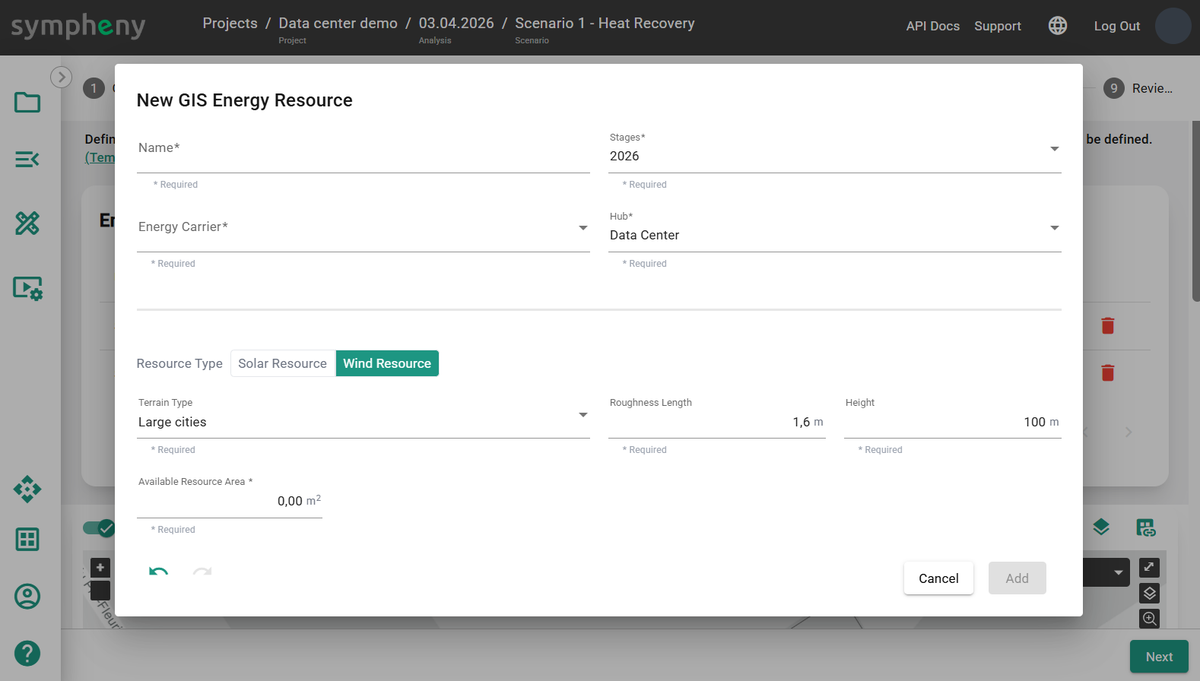

Set Surface (m²), Terrain Type, Roughness Length (m), and Height (m) to generate a wind resource profile based on those parameters.

• Surface (m²) should be the number of wind turbines multiplied by the total swept area per turbine.
• Terrain Type describes the surrounding landscape.
• Roughness Length (m) is based on the terrain type.
• Height (m) is the height of the middle of the turbine.

The maximum theoretical efficiency of a wind turbine technology using this resource profile (in kWh-wind) is 59.3%. For more information, see Wind profile power law.
